Gas-Fired Drying Tunnel for Wood Panel Coating Curing: High-Temperature Finishing Oven for MDF and Particle Board
Szczegóły Produktu:
| Miejsce pochodzenia: | CHINY |
| Nazwa handlowa: | OSMANUV |
| Orzecznictwo: | ISO9001 |
| Numer modelu: | OSM-TRQ-920 |
| Dokument: | Natural Gas Drying Machine.pdf |
Zapłata:
| Minimalne zamówienie: | 1 zestaw |
|---|---|
| Cena: | negotiable |
| Szczegóły pakowania: | Opakowanie drewna |
| Czas dostawy: | 45 dni |
| Zasady płatności: | T/t |
| Możliwość Supply: | Negocjacja |
|
Szczegóły informacji |
|||
| Nazwa produktu: | Linia maszynowa suszenia gazu | Transmisja jest ograniczona: | 920 mm |
|---|---|---|---|
| Prędkość linii produkcyjnej: | 1-20 m/min | Elektryczność: | 35,5kw |
| Rozmiar maszyny: | 90000 mm*1650 mm*2250 mm | Cykl produkcji: | 35-45 dni |
| Podkreślić: | gas-fired wood panel drying tunnel,high-temperature MDF curing oven,industrial particle board finishing oven |
||
opis produktu

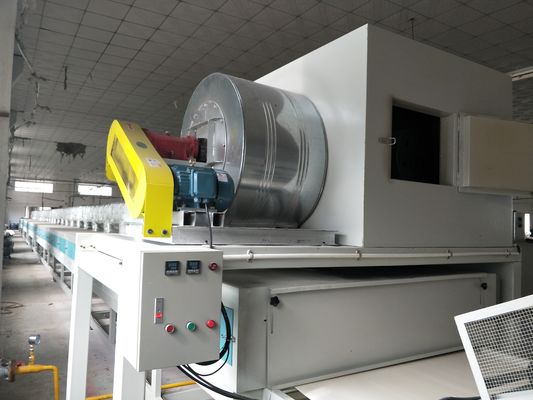

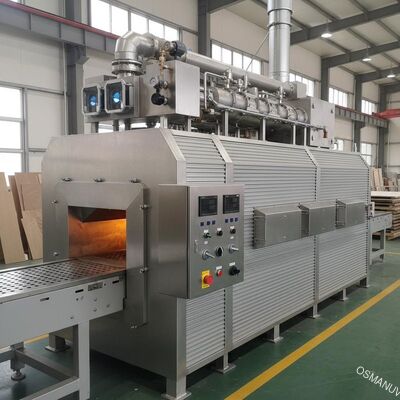

Gas-Fired Drying Tunnel for Wood Panel Coating Curing: High-Temperature Finishing Oven for MDF and Particle Board
-

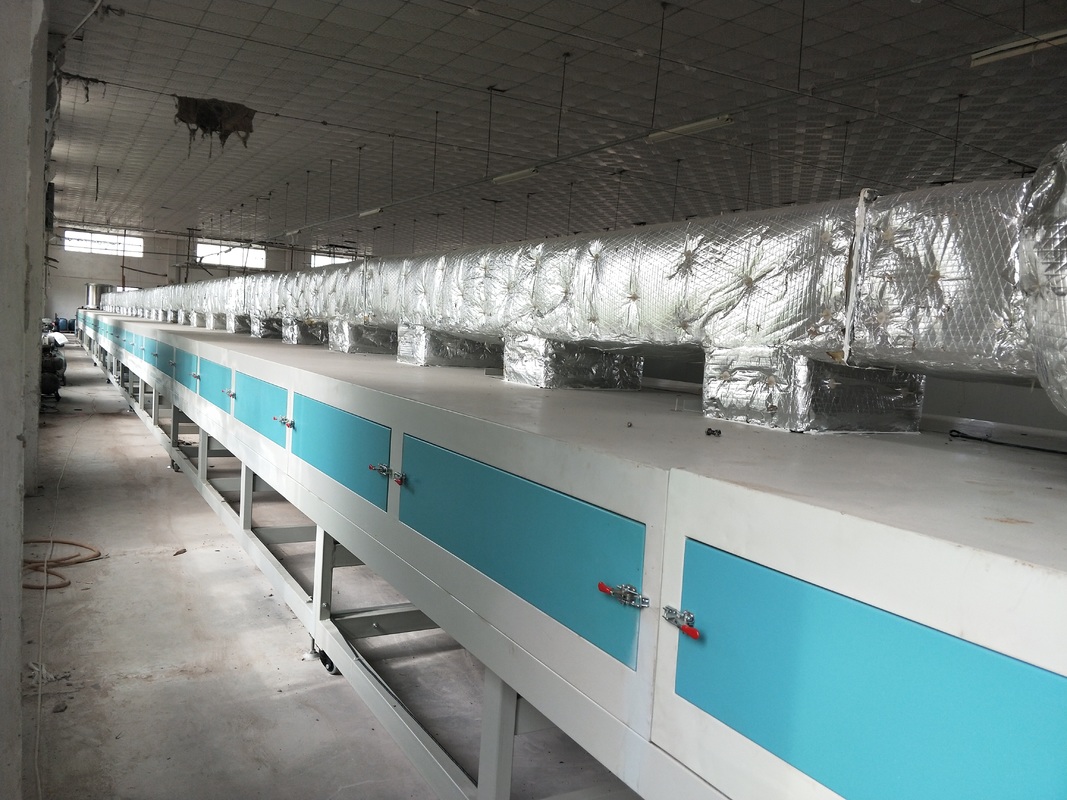

Composition of Production Line:
This line features a powder-coated steel structure, chain or roller conveyor system, high-velocity heated air plenums, energy recovery system, automatic fire suppression system, and advanced emission control unit. -
Product Description:
This heavy-duty gas-fired drying tunnel is designed for the rapid curing of coatings on wood-based panels like MDF, particle board, and HDF. It provides the high temperatures and intense air movement required to quickly cross-link and harden UV, water-based, and solvent-based coatings, resulting in a durable, scratch-resistant finish. The direct-fired system offers maximum thermal efficiency for demanding factory environments. -
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Model | OSM-TRQ-920 |
| Suitable Product | MDF, Particle Board, HDF, Plywood Panels |

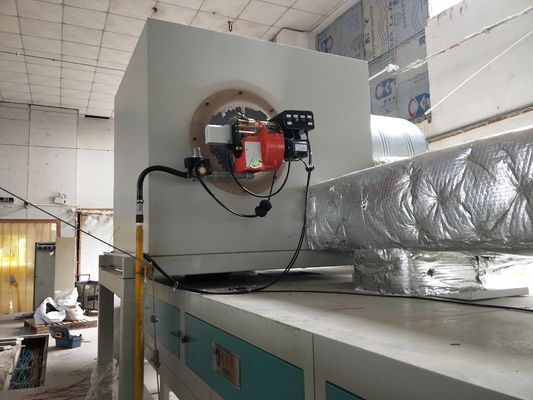

| Heat Source | Direct Gas-Fired Air Make-up System |
| Max. Operating Temp | 250°C |
| Conveyor Width | 2200 mm (Customizable) |
| Panel Thickness | 3mm - 50mm |
| Energy Recovery | Optional Air-to-Air Heat Exchanger |
| Control System | PID temperature control with data logging |
-
Application:
Curing painted or coated furniture panels, cabinet doors, laminate flooring, and other engineered wood products. -
Customization:
The tunnel is highly customizable. Options include different conveyor systems (chain, roller, flat-top), varying heat recovery systems to improve efficiency, and custom lengths to achieve the required cure time at your line speed. -
Feature:
-
Fast Curing Times: High air temperature and velocity drastically reduce curing time.
-
High Efficiency: Direct-fired system puts 100% of the heat into the oven.
-
Robust Construction: Built to withstand harsh industrial conditions.
-
Enhanced Safety: Integrated flame supervision and fire suppression systems.
-
-
Support and Services:
Commissioning by certified engineers, compliance documentation for safety systems, and preventative maintenance contracts. -
Packing and Shipping:
Major structural sections are pre-assembled. Internal components like burners and fans are packed securely within the sections to minimize site work. -
FAQ:
Q: Is a direct-fired system safe for curing coatings?
A: Yes, when designed correctly. Our systems use 100% fresh air make-up, and the combustion gases are thoroughly mixed and diluted to safe levels before contacting the product. This is a standard and efficient method for industrial curing ovens.
