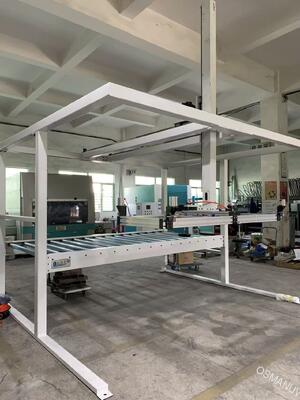

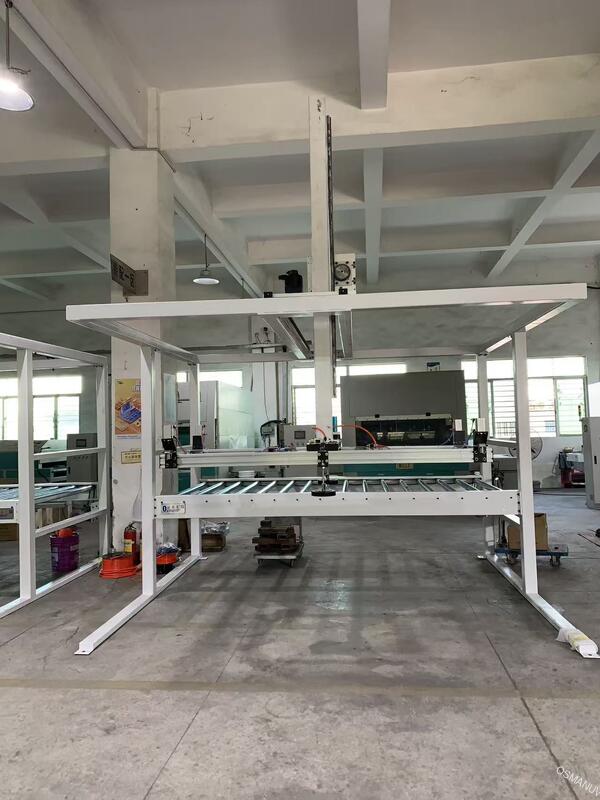

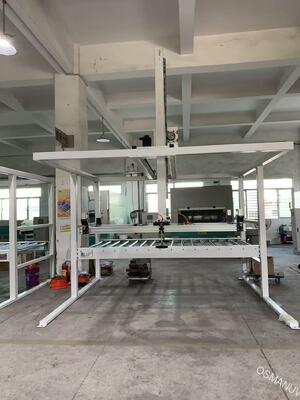

High-Load Modular Gantry Robotic Manipulator with Customizable Stroke and Payload for Heavy-Duty Applications
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny |
| Nazwa handlowa: | OSMANUV |
| Orzecznictwo: | ISO9001 |
| Numer modelu: | Specyfikacja |
Zapłata:
| Minimalne zamówienie: | 1 zestaw |
|---|---|
| Cena: | Zbywalny |
| Szczegóły pakowania: | Opakowanie drewna |
| Czas dostawy: | 30 dni |
| Zasady płatności: | T/T |
| Możliwość Supply: | Negocjacja |
|
Szczegóły informacji |
|||
| Typ napędzany: | Elektryczny | Typ lampy UV: | Lampa rtęciowa lub lampa UV LED |
|---|---|---|---|
| Grubość powłoki: | Jednolita grubość | Długość wałka polerskiego: | 660/1060/1360 |
| Moc lampy UV: | 6/8/9,7 kW | Grubość papieru: | 80-600 g/m2 |
| Źródło światła: | Zimne światło | Szerokość robocza: | 600/1000/1300 |
opis produktu
This heavy-duty gantry manipulator is engineered for high-precision loading and unloading of workpieces up to 2,000 kg. Designed for demanding applications in automotive, aerospace, and heavy machinery manufacturing, the rigid steel structure ensures long-term stability in harsh industrial environments.
| Parameter | Value |
|---|---|
| X-axis travel | 2,000 - 12,000 mm (customizable) |
| Y-axis travel | 1,000 - 5,000 mm (customizable) |
| Z-axis travel | 500 - 2,000 mm |
| Max. payload | 500 - 2,000 kg |
| Repeatability | ±0.1 mm |
| Max. speed | 2 m/s |
Automotive stamping lines, heavy palletizing, wind turbine blade handling, and large die-casting machine tending.
Fully customizable grippers, stroke lengths, mounting interfaces, IP rating (IP54 - IP67), and control system compatibility (Rexroth/Beckhoff).
- Dual-drive anti-skew control
- Crash protection & collision detection
- Energy-saving regenerative drives
24/7 remote diagnostics, on-site installation, programming training, and comprehensive 2-year warranty.
Disassembled in steel frames with plywood crates. Shipped by FCL or breakbulk with anti-rust treatment for optimal protection.
A: Yes, X-axis travel is fully customizable and can be extended to 15+ meters to accommodate specific press requirements.
Vision-guided gantry robot, dual-station pallets, conveyor merge/diverge unit, SCADA interface, safety light curtains. Customizable line integration available to suit specific production needs.
A flexible gantry manipulator designed for medium-to-high mix production lines. Integrated 2D/3D vision enables random picking from bins or conveyors, making it ideal for electronics, packaging, and small parts assembly applications.
| Parameter | Value |
|---|---|
| Work envelope (X/Y/Z) | 1,000 / 800 / 300 mm (customizable) |
| Payload | 5 - 50 kg |
| Repeatability | ±0.05 mm |
| Vision integration | Cognex / Keyence (customizable) |
| Cycle time | < 3 sec per pick |
CNC machine tending, PCB panel handling, injection molding insert loading, and sortation lines.
Customizable end-of-arm tooling, vision algorithms, conveyor height, and UL/CE electrical components to meet specific operational requirements.
- Fast tool change system
- Drag-chain cable management
- Plug-and-play with major PLCs (Profibus/EtherCAT)
Remote troubleshooting, 48-hour spare parts dispatch, and comprehensive preventive maintenance plans.
Modular crates with protective foam padding. Worldwide shipping available via air or sea freight.
A: Yes, with customizable vision training and specialized gripper design, the system can effectively handle parts in random orientations.
