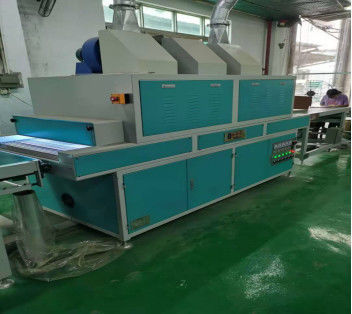

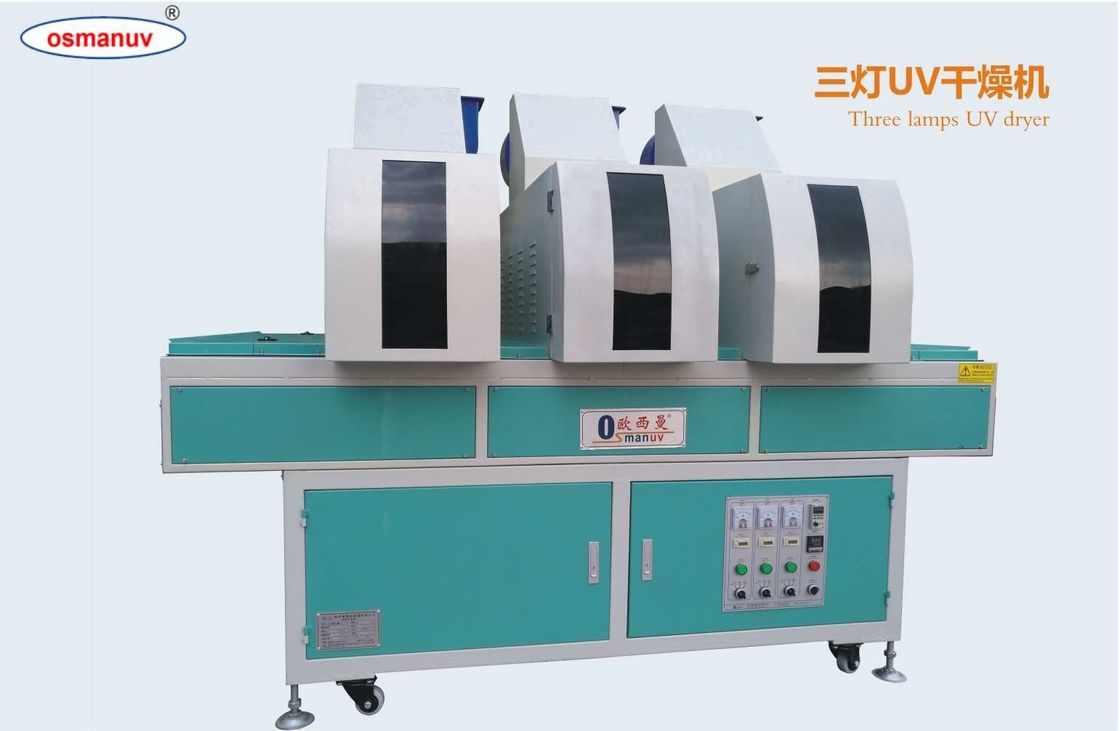

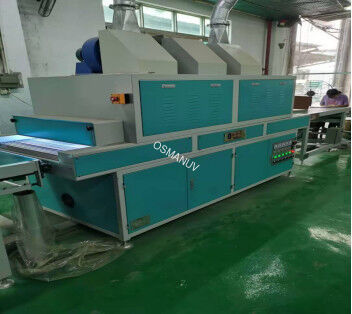

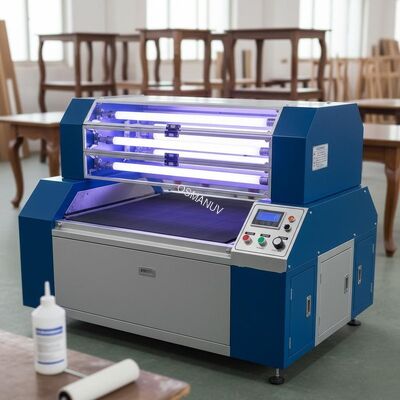

3-Lamp UV Curing Machine for Wooden Furniture Coating: High-Power Instant Drying Oven for UV Varnish
Szczegóły Produktu:
| Miejsce pochodzenia: | CHINY |
| Nazwa handlowa: | OSMANUV |
| Orzecznictwo: | ISO9001 |
| Numer modelu: | osm-uv-1320Ⅲ |
Zapłata:
| Minimalne zamówienie: | 1 zestaw |
|---|---|
| Cena: | negotiable |
| Szczegóły pakowania: | Opakowanie drewna |
| Czas dostawy: | 40 dni |
| Zasady płatności: | T/t |
| Możliwość Supply: | Negocjacja |
|
Szczegóły informacji |
|||
| Nazwa produktu: | 3 Lampa UV Utwardzanie | Lampa ultrafioletowa: | 10 kW 3PCS |
|---|---|---|---|
| Szerokość powłoki: | 1320 mm | Stan: | Nowy |
| System chłodzenia: | Wentylator chłodzący | Gwarancja: | 1 rok |
| Świadczona usługa po sprzedaży: | Inżynierowie dostępni do serwisu maszyn za granicą, obsługa techniczna wideo, wsparcie online, dostę | ||
opis produktu
3-Lamp UV Curing Machine for Wooden Furniture Coating: High-Power Instant Drying Oven for UV Varnish
-
Product Description:
This high-intensity 3-lamp UV curing machine is engineered for rapid and thorough curing of UV coatings, varnishes, and inks on flat or moderately profiled surfaces like wooden panels, furniture components, and PVC sheets. The triple-lamp array ensures complete exposure, eliminating sticky surfaces and achieving maximum hardness and scratch resistance instantly. It is ideal for integration into automated production lines requiring high throughput and guaranteed cure quality. -
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Model |
OSM-UV-1320Ⅲ |
| Suitable Substrate | Wood, MDF, PVC, Acrylic Sheets |
| UV Lamps | 3 x High-Power Mercury Lamp (**Customizable** to 2x/3x) |
| Lamp Power | 3.6 kW / 6.0 kW / 9.0 kW (Selectable, Customizable) |
| Effective Cure Width | 1200 mm (Customizable) |
| Conveyor Speed | 5-20 m/min |
| Power Supply |
380V 50HZ, three-phase four-wire system |
|
Mechanical dimensions
|
2300mm long x 2230mm wide x 1410mm high. (According to the actual size)
|
|
Efficient machining size
|
Effective width: 1320mm, thickness: 2-80mm, length (shortest): 300mm.
|
-
Application:
Curing UV varnish on wooden furniture, flooring, cabinet doors; hardening coatings on PVC profiles and aluminum composite panels. -
Customization:
The machine can be customized with different conveyor types (belt, roller), lamp power combinations, and additional cooling sections to suit specific line integration needs. -
Feature:
-
Instant Curing: Cures coatings in seconds, enabling immediate handling.
-
High Hardness: Achieves superior scratch and chemical resistance.
-
Triple-Lamp Assurance: Ensures no shadowing and complete curing.
-
Robust Construction: Built for 24/7 industrial operation.
-
-
Support and Services:
Free installation guidance via video call, detailed operation manual, and a one-year warranty on UV lamps and electronic components. -
Packing and Shipping:
The machine is fully assembled and tested before shipment. It is securely packed in a wooden crate with foam reinforcement to prevent transit damage. -
FAQ:
Q: Why choose a 3-lamp system over a 1 or 2-lamp system?
A: A 3-lamp system provides a higher total UV energy output and a longer exposure time under the lamps at the same conveyor speed. This guarantees a complete cure for thicker coatings or faster line speeds, which is critical for high-quality furniture finishing.
