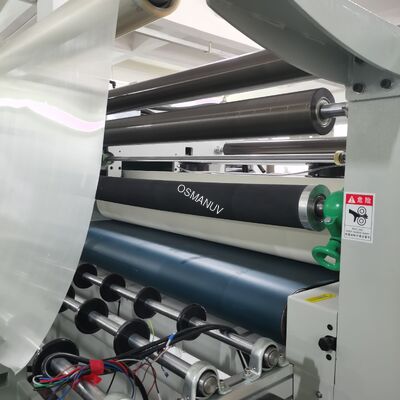

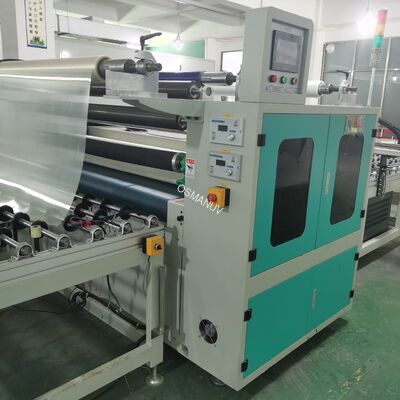

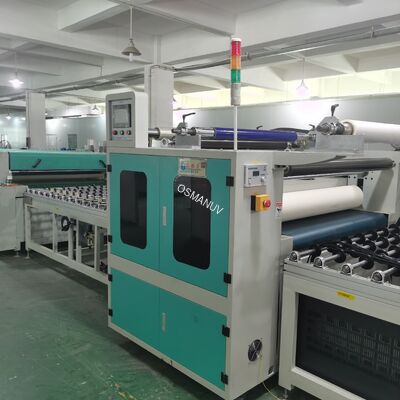

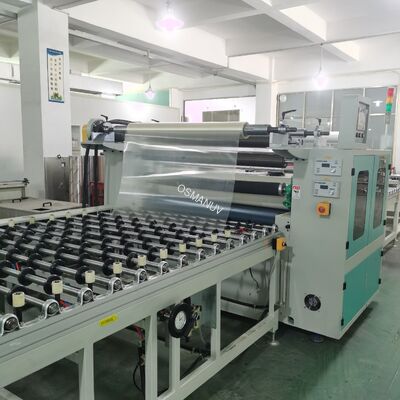

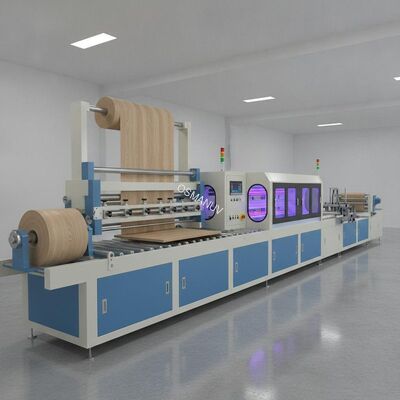

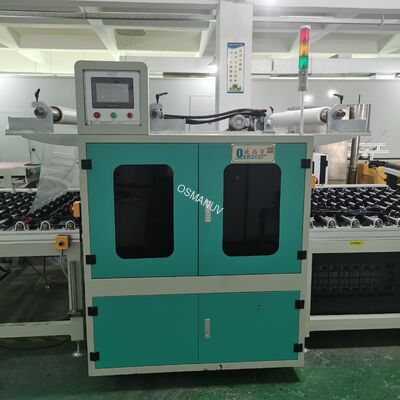

Continuous Roll-to-Board Wood Pattern Laminating Line with UV Curing – Customizable Film Width & Laminating Speed

This customizable automatic wood grain laminating machine is engineered for applying decorative wood-grain patterns, PVC films, melamine paper, or veneer onto various board substrates in a continuous, high-efficiency process. Available in wide-format board, roll-to-board continuous, and multi-layer PVC embossing configurations.

The system is fully customizable in board width, laminating speed, heating method, and automation level. It uses heat-activated adhesives combined with precisely controlled pressure rollers to bond decorative films firmly to substrates, producing durable, wood-like decorative panels with smooth, wear-resistant, moisture-proof surfaces.

Working Principle: Substrates (MDF, particleboard, plywood, etc.) are coated with adhesive, passed through a heating section to activate the adhesive, then laminated with decorative film under pressure from heated rollers. The laminated surface can be further enhanced with embossing rolls for realistic wood grain texture or UV curing for added durability.

• Furniture industry: Decorative boards for cabinets, desks, wardrobes, shelves
• Flooring: Laminate flooring, PVC flooring with wood-grain finish
• Wall panels & door panels: Interior decorative wall coverings, door skin lamination
• Building materials: MDF, particleboard, plywood surface decoration
• Advertising & signage: Display boards, promotional panels
• Window & door frames: Wood-grain finish for PVC/Aluminum profiles

This automatic laminating machine is highly customizable to meet your specific production requirements:

• Board/film width: Customizable from 600mm to 1500mm+
• Laminating layers: 1-layer, 2-layer, or 3-layer configuration
• Heating method: Electric heating / Thermal oil circulation / Infrared heating - customizable
• Adhesive type: Water-based glue / Hot-melt adhesive (solvent-free) / Pre-coat
• Film materials: Wood-grain paper, PVC film, Melamine paper, Veneer, Aluminum foil, High-pressure laminate (HPL)
• Surface finish: Glossy, Matte, Textured, 3D embossed, Synchronized grain effect
• Pressure roller system: Pneumatic or hydraulic - customizable pressure control
• Automation level: Manual feeding → Semi-automatic → Fully automatic with auto feeder & stacker
• Additional modules: UV curing unit, embossing roller, edge trimming, automatic film cutting
• Color & finish: Customizable RAL color for machine frame

• Precise lamination control: Adjustable pressure and temperature ensure bubble-free, wrinkle-free bonding
• High efficiency: Continuous operation with automatic feeding and stacking reduces manual intervention
• Versatile material compatibility: Handles various films (wood-grain paper, PVC, melamine, veneer) and substrates
• Heat-activated adhesive system: Ensures strong, durable bond; hot-melt adhesive is solvent-free and eco-friendly
• Optional embossing function: Create realistic wood grain textures and 3D surface effects
• PLC control with recipe storage: One-touch settings for different product specifications
• Dust removal system: Ensures clean surface before lamination for superior finish
• Low maintenance: Sturdy chain/sprocket transmission, sealed bearings, easy-to-clean surfaces

• Free process consultation - send us your substrate and film for trial lamination
• Custom layout design for your production floor
• On-site installation and commissioning (customizable support packages)
• Operator training program included (on-site or video)
• Remote troubleshooting via video call or IoT monitoring
• 12-month warranty on mechanical components
• Spare parts availability from regional warehouses
• Lifetime technical support via phone, email, or chat

• Packing: Anti-rust film + reinforced plywood case for main body and control cabinet; foam padding for fragile components (rollers, control panel)
• Standard model lead time: 15-25 days after order confirmation
• Custom configuration lead time: 30-45 days (longer for custom rollers or multi-layer configurations)
• Shipping: FOB Shanghai / CIF by sea, air, or rail
• Customizable: Export crating, custom labeling, destination port documentation
