Rotary Spin Coating System for Sustainable Pulp Molded Products
Szczegóły Produktu:
| Miejsce pochodzenia: | CHINY |
| Nazwa handlowa: | OSMANUV |
| Orzecznictwo: | ISO9001 |
| Numer modelu: | OSM -xt-3200T |
| Dokument: | Version 2.0 of 24-station s...on.pdf |
Zapłata:
| Minimalne zamówienie: | 1 zestaw |
|---|---|
| Cena: | negotiable |
| Szczegóły pakowania: | Opakowanie drewna |
| Czas dostawy: | 60 dni |
| Zasady płatności: | T/t |
| Możliwość Supply: | Negocjacja |
|
Szczegóły informacji |
|||
| Woltaż: | 220 V, 380 V, 380 V/220 V, 220 V/380 V, 380 V/50 Hz | Stan: | Nowy |
|---|---|---|---|
| Świadczona usługa po sprzedaży: | Inżynierowie dostępni do serwisu maszyn za granicą, obsługa techniczna wideo, wsparcie online, dostę | wymiar (l*w*h): | Dostosowany rozmiar, 2580*1130*1140 mm, 1000*2575*1750 mm, 1200*620*550 mm (L*W*H), 1030*1000*620 mm |
| Gwarancja: | 1 rok, rok, 12 miesięcy | Moc: | 3KW, 16kW, 65,3 kW, 4,2 kW, 0,75 kW/220 V/50 Hz |
| Nazwa produktu: | 24-stacja linia maszynowa | Prędkość: | Nastawny |
| Podkreślić: | rotary spin coating system for pulp molding,biodegradable film precision application machine,pulp molding coating machine with warranty |
||
opis produktu

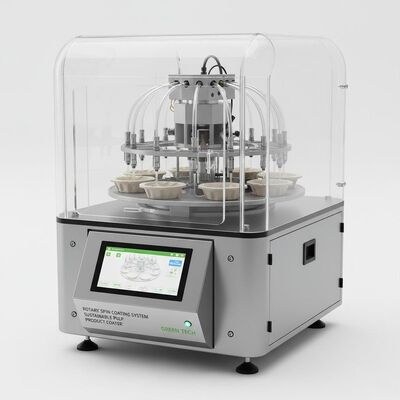

Rotary Spin Coating System for Sustainable Pulp Molded Products

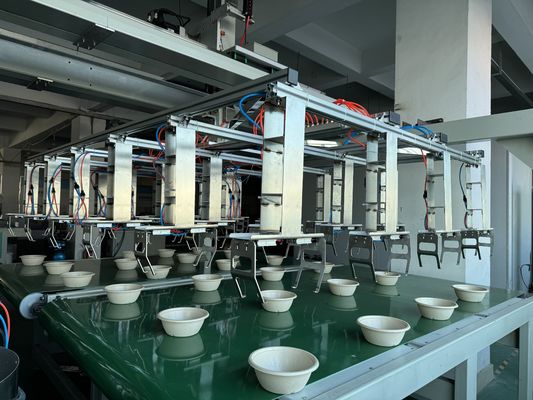

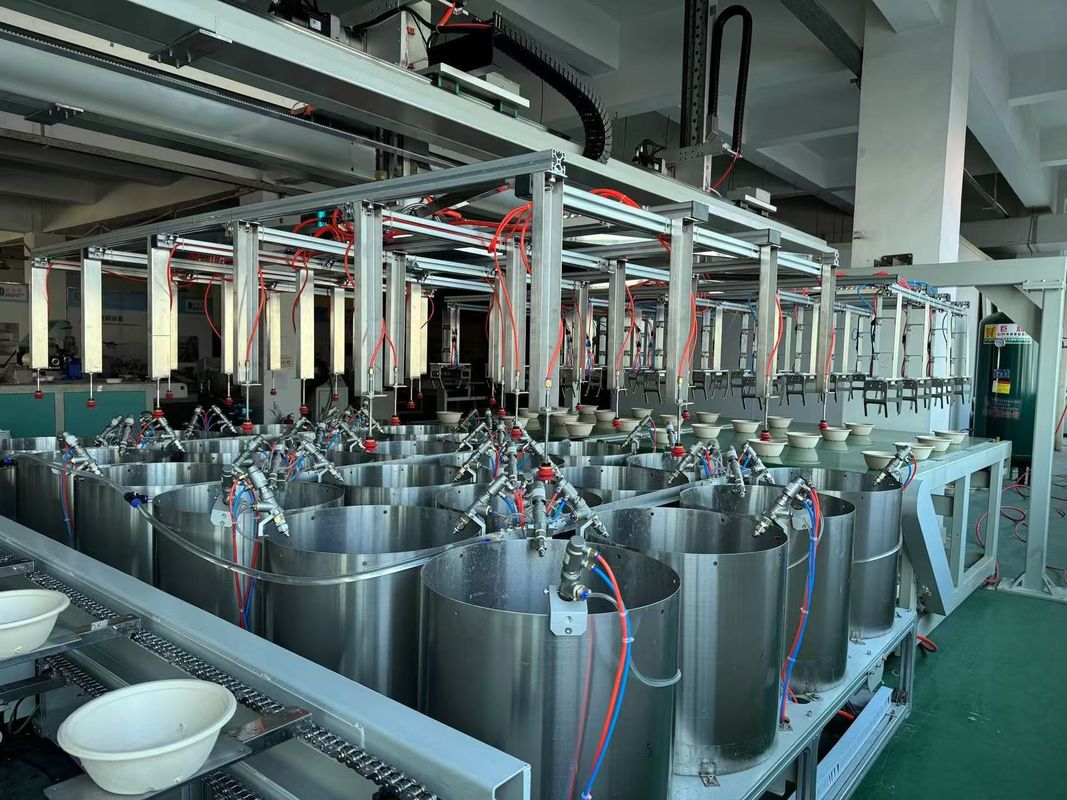

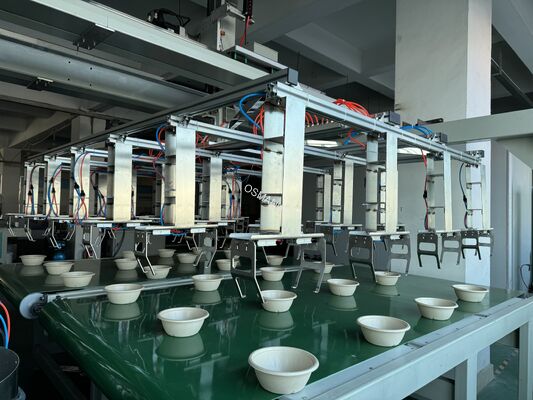

Composition of Production Line:
This precision line features a servo-driven indexing system, 24 individually programmable stations, high-precision ultrasonic spray or low-flow spray valves for minimal waste, a controlled climate pre-dry zone, a energy-efficient IR drying machine, and a final cooling conveyor.
Product Description:
This advanced rotary spin coating line is designed for applying the latest biodegradable, compostable, or UV-curable coatings to premium and sustainable pulp packaging. It focuses on precision application to minimize material usage—a critical cost factor for specialty coatings—while ensuring perfect performance. Ideal for high-value products in the electronics, cosmetic, and organic food sectors.
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Model | OSM-XT-3200T |

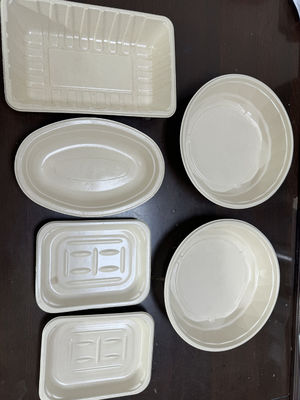

| Suitable Product | Premium Pulp Packaging, Electronics Trays, Cosmetic Containers |
| Number of Stations | 24 |
| Coating Technology | Programmable Ultrasonic Spray / Low-Flow Spin Coating |
| Coating Type | Biodegradable (PLA, PHA), Water-Based, UV-Curable |
| Curing Method | Customizable (UV-LED, NIR, or Low-Temp Hot Air) |
| Control System | Advanced PLC with IoT connectivity for data monitoring |
| Coating Weight Accuracy | ±2% |
Application:
Applying ultra-thin, functional barriers and aesthetic coatings to premium pulp molded products requiring home or industrial compostability certifications.
Customization:
Highly customizable based on coating chemistry. Options include ultrasonic spray heads for ultra-low viscosity materials, UV-LED curing for instant cure, or NIR for gentle drying of heat-sensitive biopolymers.
Feature:
- Precision Application: Ultrasonic spin coating technology drastically reduces overspray and material consumption.
- Sustainable Focus: Compatible with the latest bio-based and compostable coating formulations.
- Gentle Curing: UV-LED or NIR options prevent thermal degradation of sensitive pulp substrates.
- Data Tracking: IoT connectivity allows for monitoring of production metrics and quality control.
Support and Services:
Extensive application development support, partnership with coating material suppliers, and remote diagnostics.
Packing and Shipping:
High-precision spray valves are shipped in separate, shock-proof packaging. The entire system is covered for dust and moisture protection.
FAQ:
Q: Can this line handle very thin, water-based coatings without clogging?
A: Yes. The ultrasonic spin coating technology is specifically designed for low-viscosity, particle-free fluids and is far less prone to clogging than conventional air spray nozzles, ensuring consistent application and minimal maintenance.
