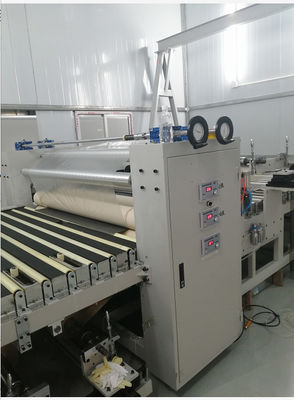

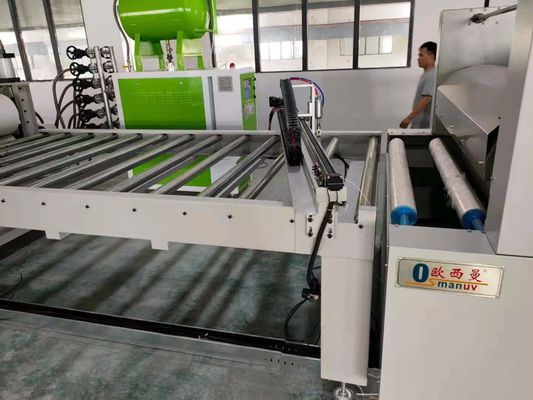

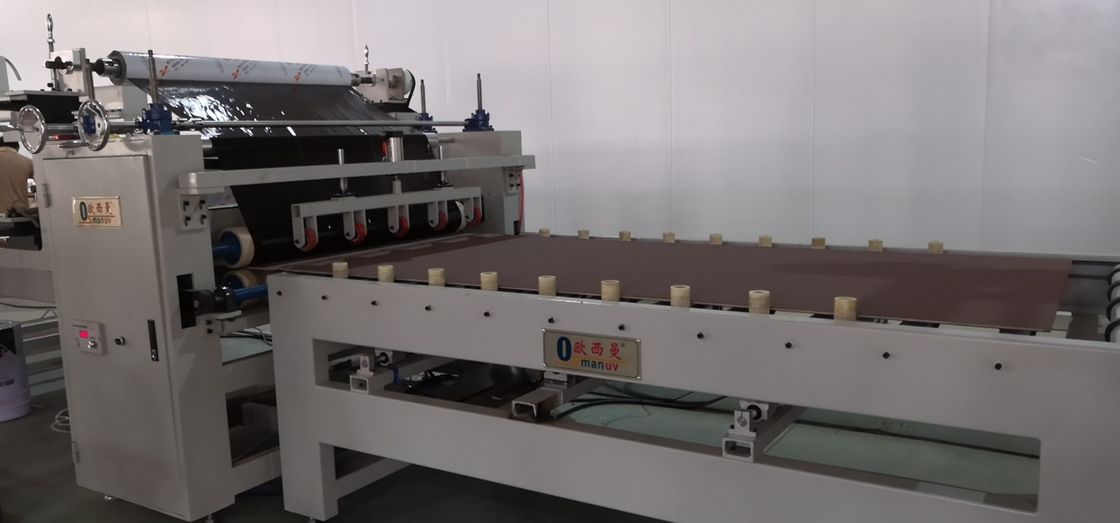

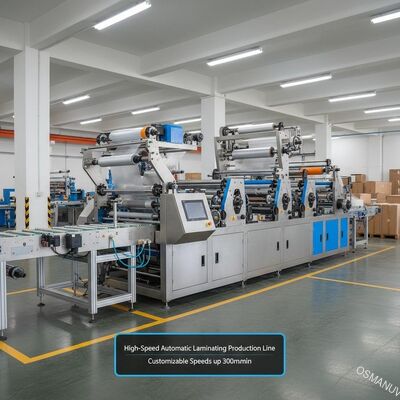

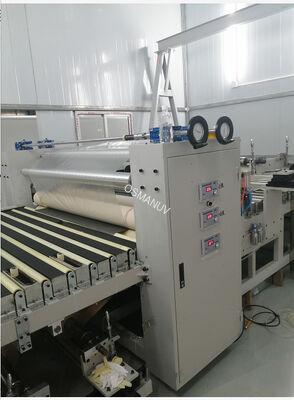

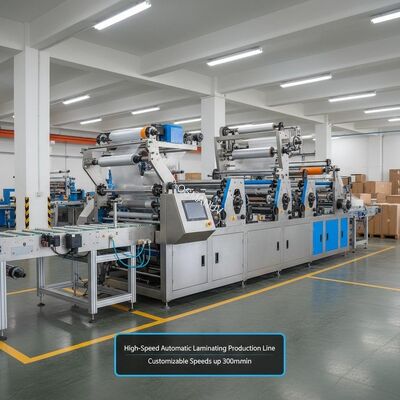

High-Speed Automatic Laminating Production Line for Flexible Packaging | Customizable Speeds up to 300m/min
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny |
| Nazwa handlowa: | OSMANUV |
| Orzecznictwo: | ISO9001 |
| Numer modelu: | GL-HS1000 |
Zapłata:
| Minimalne zamówienie: | 1 zestaw |
|---|---|
| Cena: | Zbywalny |
| Szczegóły pakowania: | Opakowanie drewna |
| Czas dostawy: | 30-45 dni |
| Zasady płatności: | T/T |
| Możliwość Supply: | Negocjacja |
|
Szczegóły informacji |
|||
| Ocena automatyczna: | Automatyczny, półautomatyczny, elektryczny | Typ napędzany: | Elektryczne, hydrauliczne, mechaniczne, pneumatyczne |
|---|---|---|---|
| Typ: | Maszyna laminująca, fabryczna w pełni automatyczna folia termiczna maszyna do laminowania | Rodzaj opakowania: | Etui, kartony, folie, torby, butelki |
| Aplikacja: | Maszyny i sprzęt, towar, medyczne, chemiczne, jedzenie | Zapewniona obsługa posprzedażna: | Inżynierowie dostępni do obsługi maszyn za granicą, Wsparcie techniczne wideo, Konserwacja i naprawa |
| Materiał opakowaniowy: | Drewno, plastik, papier, metal | Kolor: | Możesz zdecydować, na życzenie klienta, srebrny, niebieski i biały |
opis produktu
High-Speed Automatic Laminating Production Line for Flexible Packaging | Customizable Speeds up to 300m/min
Product Description
This High-Speed Automatic Laminating Production Line is a state-of-the-art solution designed for the flexible packaging industry. It integrates unwinding, adhesive coating, drying (if applicable), laminating, and rewinding into a seamless automated process. The line is engineered to bond multiple layers of materials such as BOPP, PET, CPP, Nylon, Aluminum Foil, and Paper to create high-barrier composite films. With a robust PLC control system and servo-driven technology, it ensures consistent tension control and precise registration, drastically reducing material waste and operational costs. The system supports both solvent-based and solventless adhesives, offering converters the flexibility to adapt to market demands for sustainable packaging.
Technical Parameters
| Parameter | Specification |
|---|---|
| Machine Model | GL-HS1000 |
| Max Web Width | 1050 mm (Customizable up to 1600 mm) |
| Max Mechanical Speed | 300 m/min |
| Max Production Speed | 280 m/min |
| Material Thickness Range | Film: 12-60 µm / Foil: 7-30 µm / Paper: 40-120 g/m² |
| Unwind Diameter | Max. 800 mm |
| Rewind Diameter | Max. 800 mm |
| Adhesive Type | Solvent-based, Solventless, Water-based |
| Drying Tunnels | 3-Zone Hot Air Circulation (Length customizable) |
| Coating Method | Gravure Coating (5-Roll Transfer System Optional) |
| Heating Source | Electric, Thermal Oil, or Steam |
| Machine Dimensions | Approx. 14,000 x 3,500 x 3,200 mm |
Application
Our laminating production lines are widely used in the production of:
-
Food Packaging: Stand-up pouches, vacuum bags, snack wrappers.
-
Medical Packaging: Sterilizable bags, blister pack lidding foils.
-
Industrial Materials: Reflective insulation films, waterproof roll roofing.
-
Consumer Goods: Detergent packaging, shampoo sachets, shrink film labels.
Customization
We understand that every production facility has unique requirements. Therefore, our laminating lines are highly customizable. Options include:
-
Customizable working widths to match existing slitting or printing machines.
-
Customizable unwind/rewind configurations (shaftless, turret type).
-
Customizable drying tunnel lengths and temperatures for specialized materials.
-
Integration with existing MES/ERP systems.
Feature
-
Automatic Tension Control: Closed-loop control system ensures stable tension from unwind to rewind.
-
High Precision Registration: Advanced EPC (Edge Position Control) and LPC (Line Position Control) systems.
-
Energy Efficient: Optimized drying tunnel design reduces energy consumption by up to 20%.
-
User-Friendly HMI: Touchscreen interface with one-click recipe storage for repeat jobs.
-
Robust Construction: Heavy-duty frames ensure vibration-free operation at maximum speeds.
FAQ
Q1: What is the difference between solventless and dry lamination?
A1: Solventless lamination uses adhesives without organic solvents, making it more environmentally friendly and eliminating the need for long drying tunnels, thus saving energy. Dry lamination uses solvent-based adhesives and requires a drying tunnel to evaporate the solvents, offering a wider bonding range for difficult materials.
Q2: Can this line handle Aluminum foil lamination?
A2: Yes, with the customizable tension control system, our line is perfectly capable of handling delicate materials like aluminum foil (down to 7 microns) without
