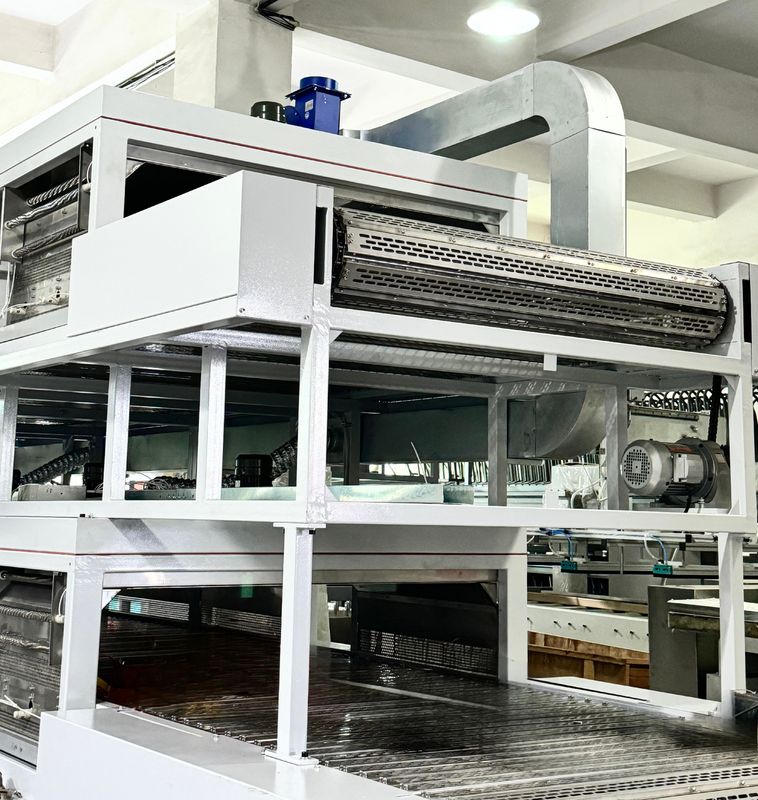

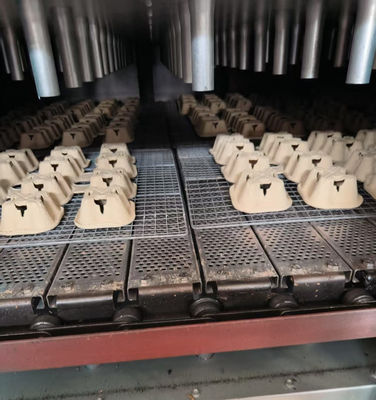

Precision-Controlled Double-Layer Natural Gas Drying Oven for Premium Molded Pulp Products

Precision-Controlled Double-Layer Natural Gas Drying Oven for Premium Molded Pulp Products

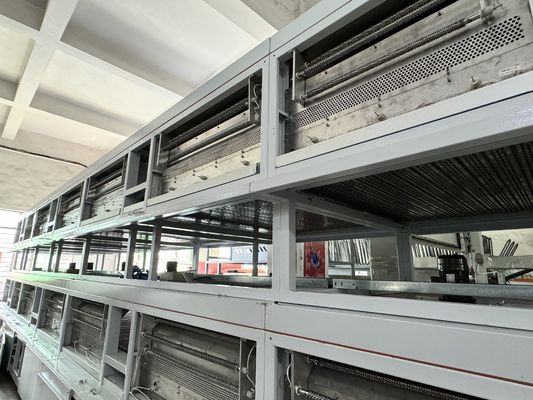

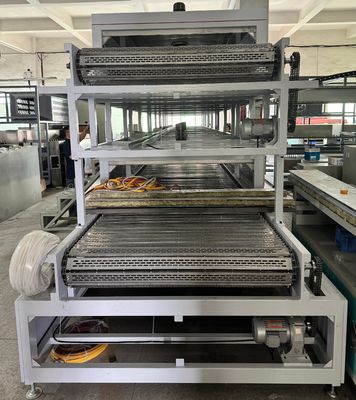

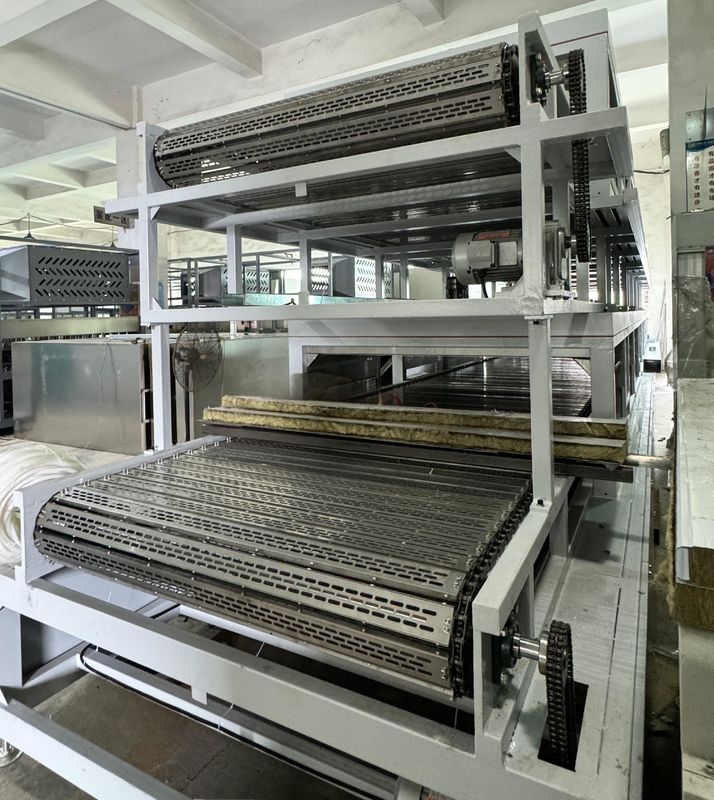

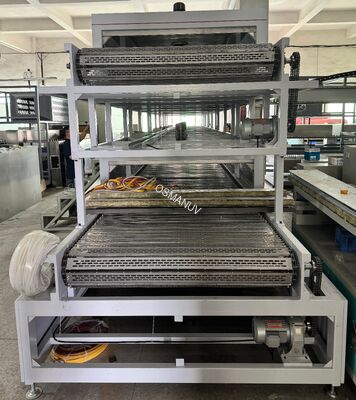

Composition of Production Line

This precision-controlled double-layer natural gas drying oven is designed for premium molded pulp products requiring exceptional quality consistency and consists of:

• Precision Feeding System: Automated infeed with product orientation and spacing control for consistent loading

• Multi-Zone Double-Layer Drying Chamber: Independently controlled temperature zones (customizable from 2 to 8 zones) with stainless steel interior lining for contamination-free operation

• Fully Modulating Natural Gas Burners: High-efficiency modulating gas burners with PID temperature controllers for precise thermal input-


• Precision PID Temperature Controllers: High-accuracy temperature control system achieving ±1.5°C uniformity across drying zones-


• Industrial Humidity Sensors & Control: Exhaust damper control system with real-time humidity monitoring for preventing case-hardening and ensuring gentle moisture removal-


• Variable Frequency Drives (VFDs): On all circulating fans for customizable airflow patterns based on product requirements-


• Heat Recovery Unit: Integrated exhaust-to-fresh-air heat exchanger for energy efficiency

• Advanced PLC Control System with Data Logging: Sophisticated control platform with full process traceability, recipe management, and factory MES integration capabilities-


• Data Connectivity Module: Ethernet/IP and cloud-ready connectivity for integration into factory monitoring systems-

• Cooling Zone: Controlled cooling section at oven exit for gradual temperature reduction to prevent thermal shock

• Automated Unloading System: Precision unloading with product inspection station and reject handling

Product Description

The Precision-Controlled Double-Layer Natural Gas Drying Oven offers unparalleled control over the drying environment for premium molded pulp products where consistent quality and precise moisture content are critical. This advanced precision natural gas drying oven precisely manages both temperature and humidity levels throughout the drying tunnel, preventing case-hardening (surface crusting) and ensuring moisture is gently and uniformly removed from the inside out. This results in superior product quality with reduced warping, cracking, inconsistent curing, and other defects, delivering higher yields for premium products-.The multi-zone insulated structure, high-efficiency natural gas burners with modulating valves, precision PID temperature controllers, industrial humidity sensors, variable frequency drives on all fans, heat recovery unit, and sophisticated PLC with data logging for full process traceability combine to provide an industry-leading drying solution-
. With temperature control accuracy of ±1.5°C and active humidity management, this system is ideal for premium food service packaging, medical packaging, and products with complex geometries prone to warping-4.

Technical Parameters

Application

Perfect for premium and high-value molded pulp products where consistent quality and precise moisture content are critical:

• Premium food service packaging: High-end plates, bowls, and food containers requiring pristine appearance and consistent mechanical properties

• Medical and healthcare packaging: Sterile medical trays, instrument packaging, and pharmaceutical packaging requiring precise moisture control

• Complex geometry molded products: Products with deep draws, undercuts, and variable wall thicknesses prone to warping

• Branded consumer packaging: High-visibility molded pulp packaging for luxury goods and consumer electronics

• Export-grade molded pulp products: Products requiring compliance with strict international quality standards

• R&D and pilot production: Process development and optimization for new molded pulp product lines

• Color-sensitive products: White or light-colored molded pulp products where discoloration from uneven drying must be avoided

Customization

The precision-controlled drying oven is extensively customizable to meet specific quality standards, production requirements, and factory integration needs. Customization options include:

• Number of independently controlled temperature zones (2 to 8 zones) for multi-stage drying profiles

• Control logic, sensor placement, and data reporting format customization to integrate with your factory‘s quality control protocols and MES system-4

• Humidity control strategy (fixed exhaust damper vs. closed-loop humidity sensor control)

• Conveyor speed control options (manual, recipe-based, or closed-loop feedback based on real-time moisture sensors)

• Burner brand and capacity (Italian Riello, German Weishaupt, or American Eclipse) based on regional service availability

• Data connectivity options (Ethernet/IP, Profibus, Modbus TCP, OPC-UA) for seamless factory integration

• Cooling zone configuration (ambient air cooling, forced air cooling, or water-cooled heat exchanger)

• Product-specific fixtures and product alignment systems for consistent presentation of irregular shapes

• In-line moisture sensing system for real-time quality feedback and automatic parameter adjustment

• Clean-in-place (CIP) system for industries requiring frequent sanitation between product batches

• Explosion-proof configuration for applications involving flammable solvents or coatings

• Custom electrical certification for specific export markets (CE, UL, CSA, EAC)

Features

• Precision Temperature Control: PID control with modulating gas valves maintains ±1.5°C temperature accuracy across all drying zones, eliminating hot spots and cold zones that cause inconsistent drying-


• Active Humidity Management: Industrial humidity sensors with exhaust damper control actively manages the drying rate by controlling humidity levels, preventing case-hardening (surface crusting that traps moisture inside) which can later lead to blistering, delamination, or mold growt

• Full Process Traceability: Records all drying parameters (temperature, humidity, conveyor speed, zone profiles) for each batch, providing invaluable data for quality assurance, process optimization, and regulatory compliance audits-

• Modulating Burners: Provide smooth, precise heat input with turndown ratios up to 30:1, improving temperature stability and fuel efficiency compared to on/off burner control systems

• Minimized Product Defects: Precision control dramatically reduces defects including warping, cracking, inconsistent curing, discoloration, and uneven shrinkage-


• Double-Layer Space Efficiency: Achieves premium drying quality within a compact footprint suitable for facilities with limited floor space-21

• Stainless Steel Interior: Food-grade stainless steel construction ensures contamination-free operation for medical and food contact applications

• Remote Data Access: Cloud-ready connectivity allows viewing real-time performance and historical reports from anywhere, providing invaluable data for process optimization and quality audits-4

Support and Services

• Process Engineering Support: Dedicated process engineering support to develop and validate drying profiles for your specific products, ensuring optimal quality from day one-4

• Quality Protocol Integration: Assistance integrating the drying oven’s data logging system with your existing quality management system (QMS) and MES platform

• Installation & Commissioning: On-site support including full system calibration, zone temperature verification, and integration with upstream/downstream equipment

• Advanced Operator Training: Comprehensive training covering PID tuning, humidity management, recipe creation, data analysis, and preventive maintenance

• Remote System Health Monitoring: IoT-based remote monitoring for proactive maintenance alerts and system health tracking-


• Software Updates: Regular software updates with new features and performance improvements

• Spare Parts Availability: Guaranteed availability of genuine spare parts including burners, sensors, drives, and replacement belts

• 24/7 Technical Support: Dedicated technical hotline with priority response for premium customers

Packing and Shipping

• Packaging: All components packed to international standards; sensitive control instruments, sensors, and valves are shipped in separate, protective packaging with shock-proof foam and humidity control packets-


• Shipping: Worldwide shipping with expedited logistics options; climate-controlled shipping available for sensitive electronic components during extreme weather conditions

• Delivery Time: 45 – 75 days depending on customization complexity, zone count, and destination

• Documentation: Full export documentation package including CE declaration, calibration certificates, PLC program backups, and comprehensive technical manuals

FAQ

Q: Why is humidity control important in drying pulp molding products?
A: If the air is too dry and hot, the surface of the product dries too quickly, forming a hard shell that traps moisture inside — a phenomenon called case-hardening. This trapped moisture can later lead to blistering, delamination, mold growth, or dimensional instability. Precise humidity control allows for a customized drying curve that gently removes moisture from the entire product thickness, ensuring uniform final moisture content and superior product quality.

Q: Can we access the drying data remotely for quality audits?
A: Yes, remote data access is a core feature of this precision-controlled system. You can view real-time performance metrics and generate historical reports from anywhere with an internet connection, providing invaluable data for process optimization and quality compliance audits-

Q: What is the typical moisture uniformity across a batch of products?
A: With precision temperature and humidity control, moisture uniformity of ±0.5% across an entire batch is achievable, significantly tighter than conventional drying systems which typically achieve ±2-3% uniformity. This consistency is critical for premium products where performance requirements are stringent.

Q: How does the multi-zone design benefit drying of complex geometries?
A: Products with varying thickness (thick base, thin walls) require different drying profiles in different areas. Multi-zone temperature control allows you to apply higher temperatures to thick sections and lower temperatures to thin sections, preventing over-drying or under-drying of specific product features. This significantly reduces warping and cracking in complex geometries.

Q: Can this system be integrated with our existing MES or ERP system?
A: Yes, the system features multiple data connectivity options including Ethernet/IP, Modbus TCP, OPC-UA, and cloud connectivity, allowing seamless integration with your factory‘s MES (Manufacturing Execution System) and ERP (Enterprise Resource Planning) platforms. Our engineering team can assist with custom API development if required-4.

Q: What is the typical ROI for upgrading to a precision-controlled drying oven?
A: ROI is typically achieved within 12-24 months through reduced scrap rates (typically 5-10% reduction), lower rework costs, improved energy efficiency (15-25% gas savings vs. conventional control), and ability to command premium pricing for higher-quality finished products.
